Description

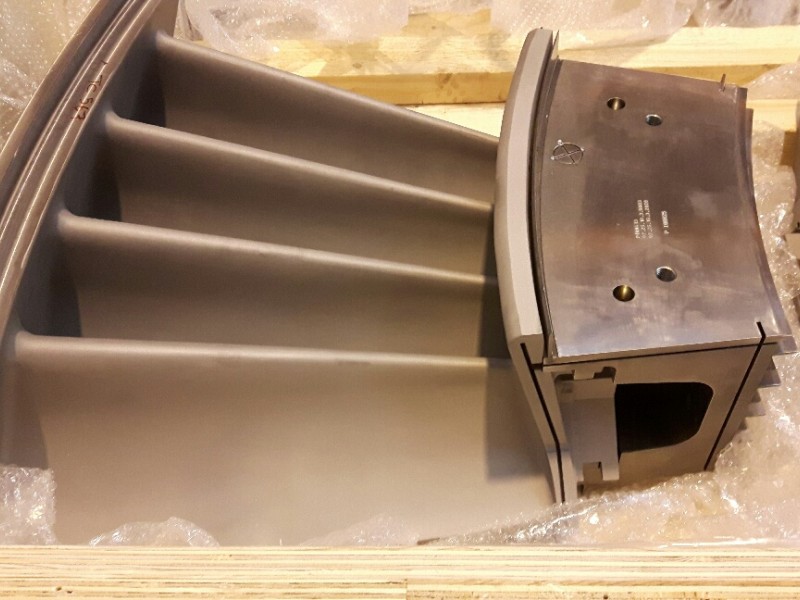

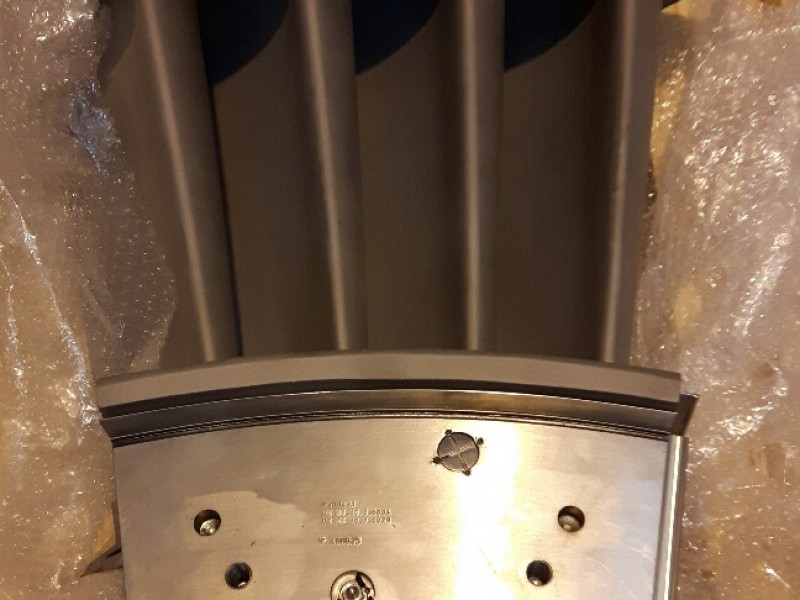

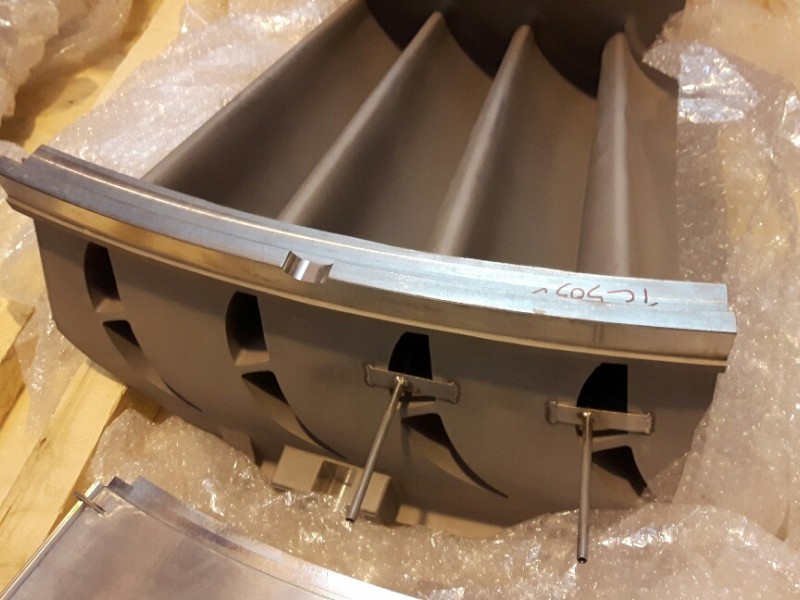

"3rd stage multi vane segment kit, equivalent to GE P/N 112E6651G001 including installation hardware, suitable for installation into General Electric 9171 Frame 9E Gas Turbine Engine. Set consisting of 16 segments. Installation hardware kits corresponds to OEM number 342A1130G006 - Turbine stator vane (set of 16) - 1off 342A1135G006 - Labyrinth block (set of 16) - 1 off 219B6830P001 - Retaining pin vane - 16 off 295A9108P001 - Plug retaining pin vane - 12 off 295A9106P001 - Retaining plate, vane retaining pin - 4 off 293A0902P009 - Bolt retaining plate - 8 off 294A0150P005 - Locking plate 5/8"" - 8 off 287A7888G001 - Thermocouple tubing - 4 off 262A3570P001 - Tubing adapter thermocouple (long) - 2 off 156A1075P022 - Tube connecter thermocouple - 2 off 287A1399P003 - Connector thermocouple #1 - 4 off 302A4537P001 - Reducer bush thermocouple - 4 off 255A4330P001 - Tubing adapter thermocouple (short) - 2 off 196D1226P007 - Dog bone seal # 1 TS Vane - 16 off 196D1226P006 - Dog bone seal # 2 TS Vane - 16 off 196D1226P005 - Dog bone seal # 3 TS Vane - 16 off 196D1226P004 - Dog bone seal # 4 TS Vane - 16 off 196D1226P011 - Dog bone seal # 1 Labyrinth block - 16 off 196D1226P012 - Dog bone seal # 2 Labyrinth block - 16 off 247B5768P002 - Retaining pin labyrinth block - 16 off 255A4327P021 - Thermocouple well (long) - 2 off 255A4327P020 - Thermocouple well (short) - 2 off " Immediate shipment after receipt of full payment."
